Rotatable indexing plates

SID

img1 img2 img3

INDEX PLATE DRIVE - INTEGRATED

SID

Servo-Indexplattendreher_SID_-_Ansicht

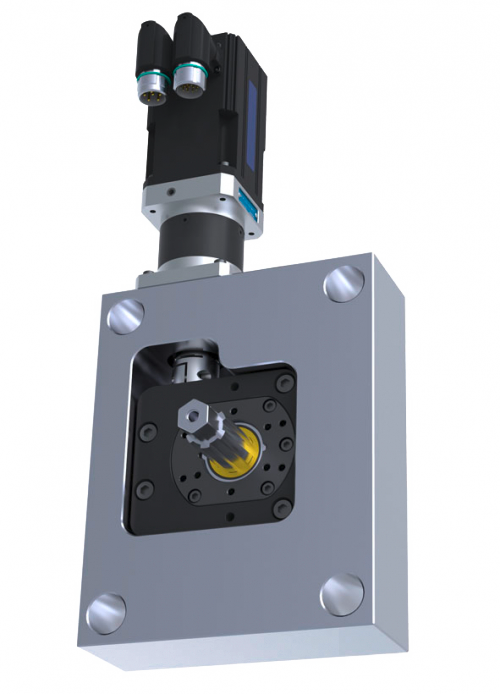

Compact rotating unit, completely integrated in injection mold with attached servomotor on top of the tool.

Product features:

  • Available for index plates up to 250 kg
  • Tool temperatures up to 150 °bis 150 °C possible
  • Encoder system resolver or absolute encoder
  • Servomotor with safety brake
SID

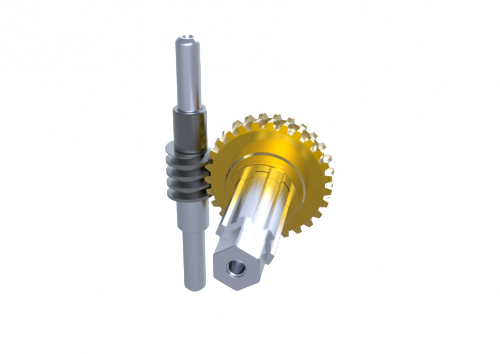

Wormwheel gearbox



The use of a worm wheel allows the 90° deflection of the drive train and thus the installation of the servo drive unit on the tool.

Servo-Indexplattendreher_SID_-_Schneckengetriebe
SID

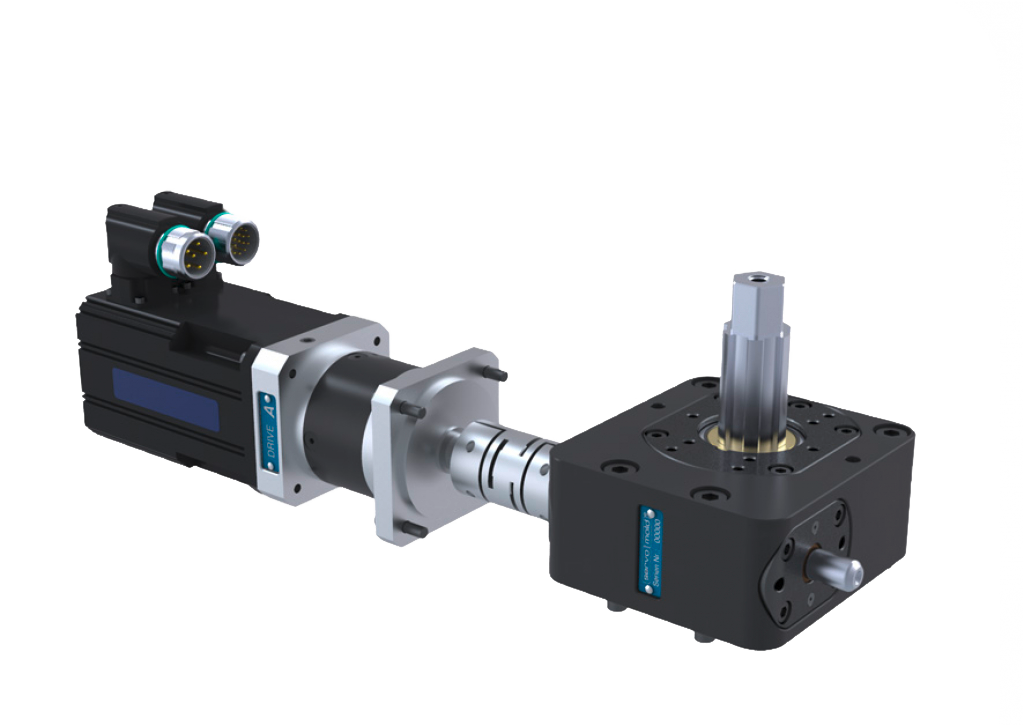

Integrated drive for rotatable indexing plates

Servo-Indexplattendreher_SID_-_Einheit
1
2
3
4
  1. Servo drive unit SAK
  2. Servo coupling
  3. Shaft for indexing plates
  4. Drive for indexing plates SID
SID

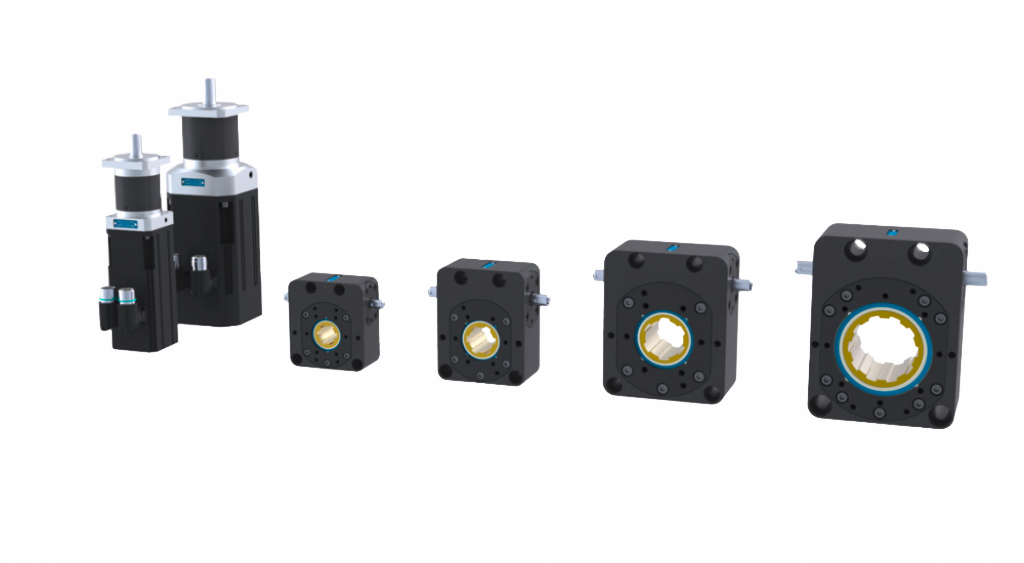

Available sizes



Your desired size is not listed?

Custom sizes on request!

Kontakt
  1. SAK060-09-0307rb
  2. SAK080-09-0711rb
  3. SID050
  4. SID060
  5. SID080
  6. SID0120
Servo-Indexplattendreher_SID_-_Verfuegbare_Groeszen
1
2
3
4
5
6

You can also find all information in our product catalogue.

Download here our current catalogue.

Download

Your contact person for this product is:

Lucas Meister

Lucas Meister

Phone: +49 6062 80933-57

i-mold Molding Innovations is your competent partner for all questions about injection molding technology. Feel free to contact us!
