Version S1 - with machining allowance

Standard_S1_-_Mit_Aufmasz
  • with machining allowance on upper surface
  • slight contourings possible
  • same properties as version S2
  • available in round (TGR) and square (TGS) versions

Standard_S1_-_Direkt_Einsetzbar

Ready to use!

Tunnel gate inserts version S1 can be installed directly. You drill the hole - we supply the proper tunnel gate insert.

Standard_S1_-_Anschnittsbereich_S1

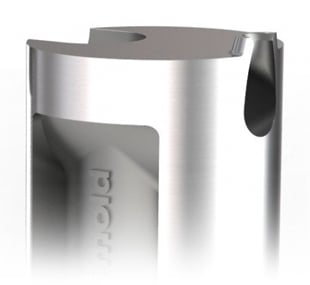

Gate point area S1

The gate point diameter of tunnel gate inserts "Standard" is already completely constructed. Due to the special manufacturing method all gate point diameters from 0,6 to 2,8 are clearly reproducible.

Standard S1

Sizes / shot weights

The chart shows the shot weights which can be reached with the respective sizes depending on the viscosity of the plastic materials used.

TGR 6 TGR / TGS 8 TGR / TGS 10 TGR / TGS 12 TGR / TGS 14
Anschnitt 0.6 0.6 / 0.8 0.8 / 1.2 / 1.6 1.2 / 1.6 / 2.0 1.6 / 2.0 / 2.4 / 2.8
Ø Kanal 2.5 3 4 5 6
NV* 3 5 30 50 200
MV* 2 4 20 35 120
HV* 1 3 12 25 75

* max. shot weight (g) | NV: low viscosity | MV: medium viscosity | HV: high viscosity



Standard S1

TGS

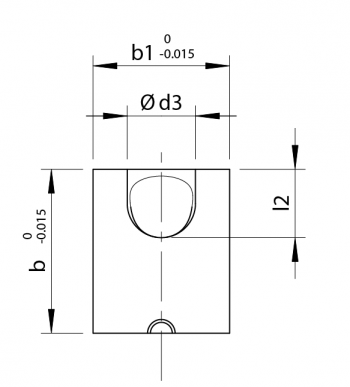

Standard_S1_-_TGS-Anschnitte_S1



b b1 d1 d3 h h1 h2 l1 l2 M Version
TGS8 8 6 0.6 / 0.8 3 22.6 0.6 1.7 13 3.25 4 S1
TGS10 10 8 0.8 / 1.2 / 1.6 4 22.0 0.8 2.0 12 4 5 S1
TGS12 12 10 1.2 / 1.6 / 2.0 5 22.8 0.8 2.2 11 5 5 S1
TGS14 14 12 1.6 / 2.0 / 2.4 / 2.8 6 22.8 0.8 2.4 10 6 6 S1



Standard S1

TGR

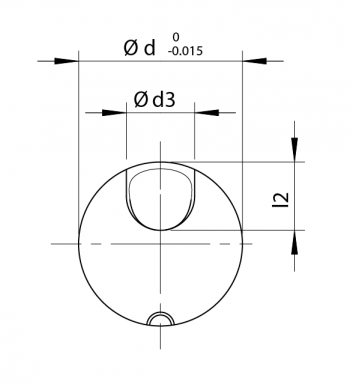

Standard_S1_-_TGR-Anschnitte_S1



b d1 d3 h h1 h2 l1 l2 M Version
TGR6 6 0.6 2.5 17.6 0.6 1.4 10 2.5 4 S1
TGR8 8 0.6 / 0.8 3 22.6 0.6 1.7 13 3.25 4 S1
TGR10 10 0.8 / 1.2 / 1.6 4 22.8 0.8 2.0 15 4 5 S1
TGR12 12 1.2 / 1.6 / 2.0 5 22.8 0.8 2.2 11 5 5 S1
TGR14 14 1.6 / 2.0 / 2.4 / 2.8 6 22.8 0.8 2.4 10 6 6 S1
Standard S1

Distance to ejector



  • Low shore hardness = shorter distance L
  • Use centring pin
  • Max. hardness 100 Shore A

Standard_S2_-_Abstand_zum_Auswerfer_-_TGR6_TGR8_TGS8
Standard_S2_-_Abstand_zum_Auswerfer_-_TGR5_TGR8_TGS8



  Table for distance L



TPE, TPU etc. PE, PP, PET etc. PC/ABS, PA, POM, HI-PC etc. PA+GF, PC, SAN, PMMA etc.
TGR 6 9-12 12-18 15-22 18-25
TGR/TGS 8 11-14 15-22 19-27 23-30
TGR/TGS 10 15-18 19-27 24-33 28-36
TGR/TGS 12 18-22 22-30 27-36 32-40
TGR/TGS 14 20-25 25-33 30-37 35-43
Standard_S2_-_Gegenkalotte

Companion vestige

For optimum degating (especially of flat parts), we recommend the use of a companion vestige supplementing the vestige with cutting edge. This configuration will ensure that the part is separated from the runner flush with the parting line. Users will find this particularly advantageous in cases where materials are susceptible to stringing.

Standard_S2_-_Flache_Teile

Flat parts

If the molded part is very thin, the vestige must be ground down. (t1>t/2)

Standard S1

Examples of installation

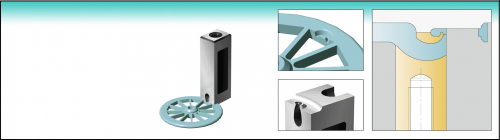

Standard_S1_-_Einbaubeispiele_Abgerundete_Kante

rounded edge

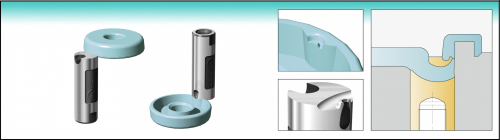

Standard_S1_-_Einbaubeispiele_mit_Flieszhilfe

with flow promoter

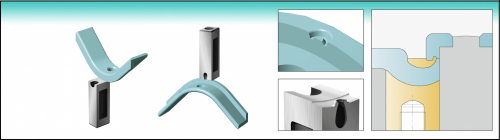

Standard_S1_-_Einbaubeispiele_gewoelbte_Trennung

rounded separation

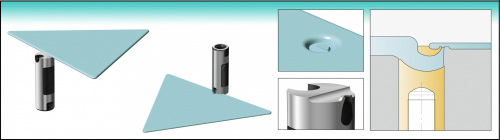

Standard_S1_-_Einbaubeispiele_Flach_mit_Gegenkalotte

flat, with companion vestige
