Contourable

For contours up to 10 mm - individually ajustable

TGC

Contourable TGC

Konturierbar_TGC
  • for contouring up to 10mm
  • individually adjustable
  • available in 2 degrees of hardness (60 HRC / 40 HRC)

TGC

Sizes / shot weights

The chart shows the shot weights which can be reached with the respective sizes depending on the viscosity of the plastic materials used.

TGC-XS TGC-S TGC-1 TGC-2 TGC-3 TGC-4
max. Konturtiefe 1 2 2 3 5 10
Anschnitt 0.4 - 0.6 0.4 - 0.8 0.6 - 1.2 0.8 - 1.8 0.5x4.5 - 1.5x5.5 0.5x4.5 - 1.5x5.5
Ø Kanal 2.5 2.5 4 6 8 8
NV* 5 12 35 120 1000 1000
MV* 4 7 25 75 500 500
HV* 3 5 15 50 300 300

* max. shot weight (g) | NV: low viscosity | MV: medium viscosity | HV: high viscosity



TGC

Detailed view

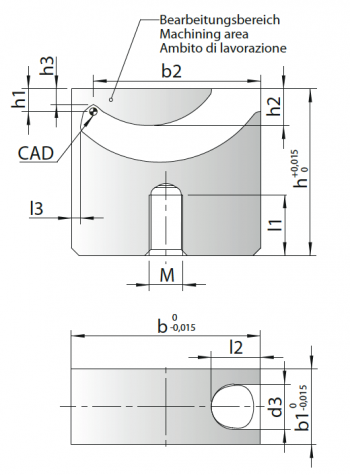

Konturierbar_TGC_-_Typen



b b1 b2 d3 h h1 h3 l1 l2 l3 M HRC
TGC-XS 10 5 8.5 2.5 12 1 0.6 5 3.2 0.7 4

Version U = 40 HRC
Version H = 60 HRC

TGC-S 15 6 12.3 2.5 18 2 1.5 8 4 0.9 4

Version U = 40 HRC
Version H = 60 HRC

TGC-1 18 8 16 4 22 2 1.3 9 5.2 0.9 5

Version U = 40 HRC
Version H = 60 HRC

TGC-2 25 10 22.1 6 22 3 2.1 8 6.5 1.2 5

Version U = 40 HRC
Version H = 60 HRC

TGC-3 30 12 26.9 8 27 5 4.1 9 7 1.2 6

Version U = 40 HRC
Version H = 60 HRC

TGC-4 45 12 41.2 8 36 10 9.1 8 9.6 1.8 6

Version U = 40 HRC
Version H = 60 HRC

TGC

Thermoplastic elastomers (TPE)



  • Low shore hardness = shorter distance L
  • Use centring pin
  • Max. hardness 100 Shore A

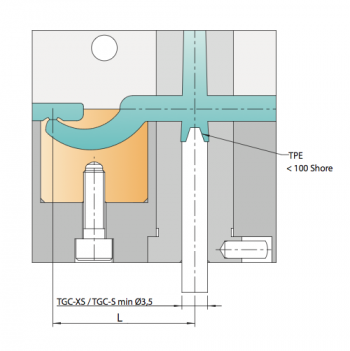

Konturierbar_TGC_-_Abstand_zum_Auswerfer_A

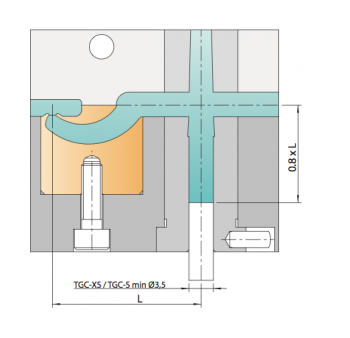

Konturierbar_TGC_-_Abstand_zum_Auswerfer_B



Table for distance L



TPE, TPU etc. PE, PP, PET etc. PC/ABS, PA, POM, HI-PC etc. PA+GF, PC, SAN, PMMA etc.
TGC-XS 12-16 13-20 16-23 22-29
TGC-S 16-21 18-25 21-28 27-34
TGC-1 21-26 26-34 31-39 36-45
TGC-2 28-33 31-39 36-44 41-50
TGC-3 33-38 38-48 43-53 48-58
TGC-4 48-53 53-63 58-68 ?
TGC

Vestige - TGC-XS / -S / -1 / -2

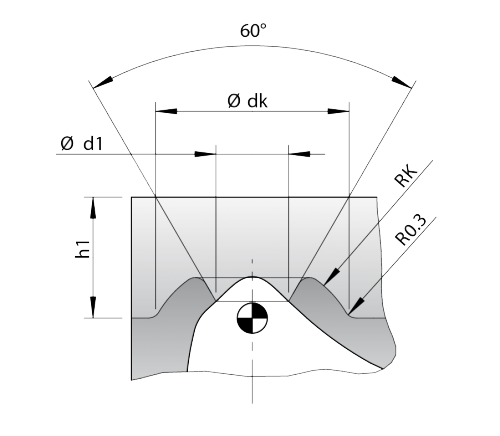

Standard Vestige

Konturierbar_TGC_-_XS-S-1-2_-_Standard-Kalotte

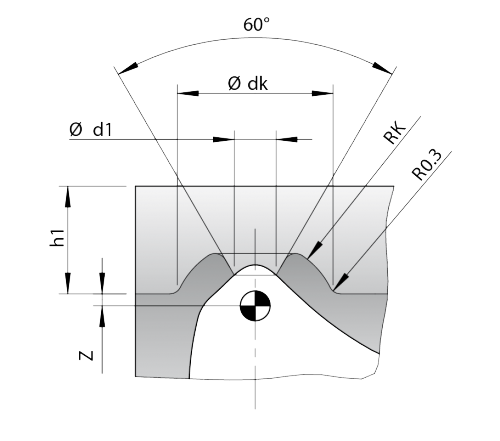

Small Vestige

Konturierbar_TGC_-_XS-S-1-2_-_Kleine_Kalotte
Anguss Konturierbar TGC - XS Kalotten Kalotte h1 d1 max dk Rk Z
TGC-XS Standard 1.0 0.6 2.5 1.6 -
TGC-S Standard 2.0 0.8 2.7 1.7 -
TGC-1 klein 1.8 0.7 2.6 1.4 0.2
TGC-1 Standard 2.0 1.2 3.2 1.8 -
TGC-2 klein 2.75 1.2 3.5 2.0 0.25
TGC-2 Standard 3.0 1.8 4.5 2.6 -
TGC

Vestiges - TGC-3 / -4



Standard Vestige

Konturierbar_TGC_-_3-4_-_Standard-Kalotte_A
Konturierbar_TGC_-_3-4_-_Standard-Kalotte_B

Small Vestige

Konturierbar_TGC_-_3-4_-_Kleine-Kalotte_A
Konturierbar_TGC_-_3-4_-_Kleine-Kalotte_B
TGC

Vestige versions

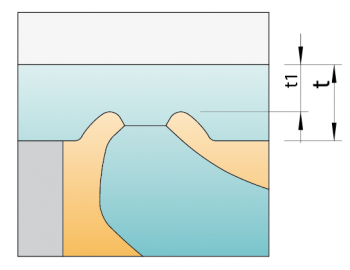

Konturierbar_TGC_-_Kalotten_Varianten_-_Kugelfoermige Kalotte_mit_Kegel

Spherical vestige with cone

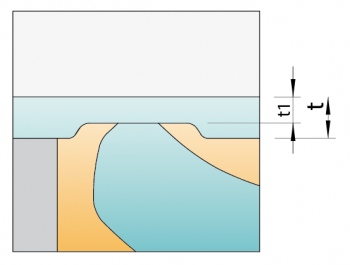

Konturierbar_TGC_-_Kalotten_Varianten_-_Abgeflachte_Kalotte_ohne_Kegel

Flattened vestige with cone

Konturierbar_TGC_v

Flattened vestige without cone

TGC

Examples of installation

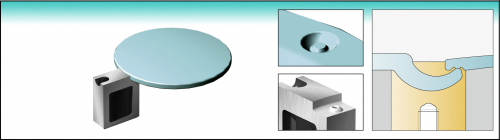

Konturierbar_TGC_-_Einbaubseispiele_-_Unter_Flaechen

under surface

Konturierbar_TGC_-_Einbaubseispiele_-_Unter_Gewoelbter_Flaeche

under rounded surface

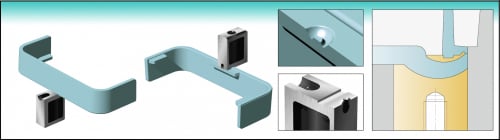

Konturierbar_TGC_-_Einbaubseispiele_-_Halbierter_Anspritzpunkt

half gate point

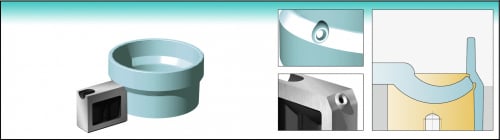

Konturierbar_TGC_-_Einbaubseispiele_-_Anspritzung_auf_Schraege

angled gating
