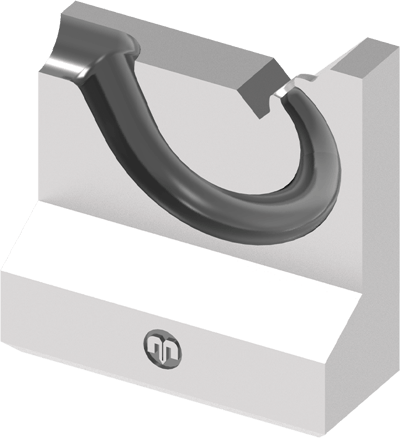

Contourable TGBL

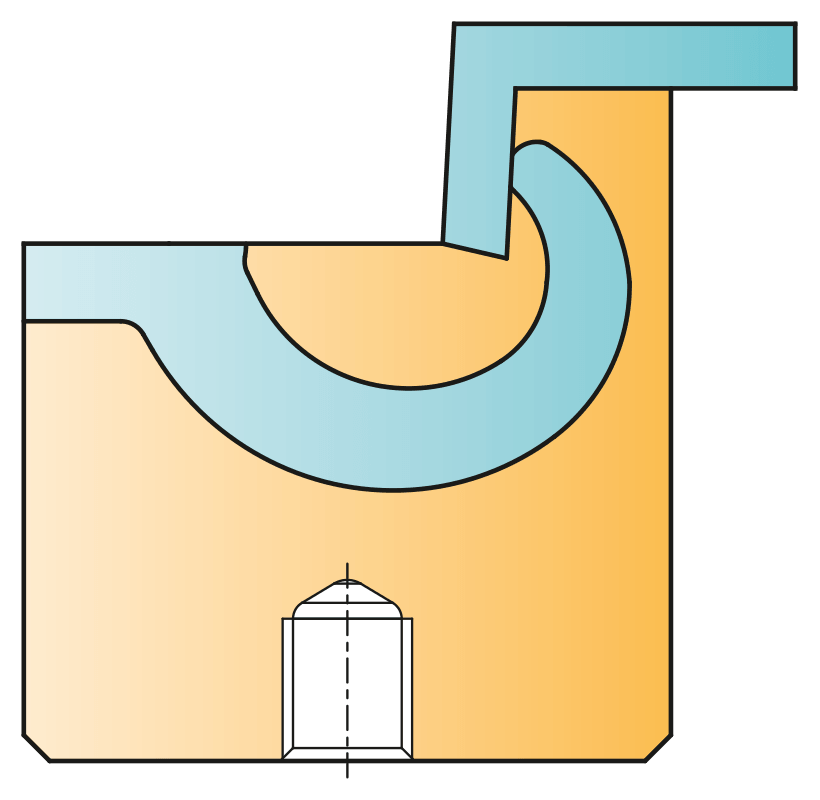

konturierbar-TGBL-bauplan

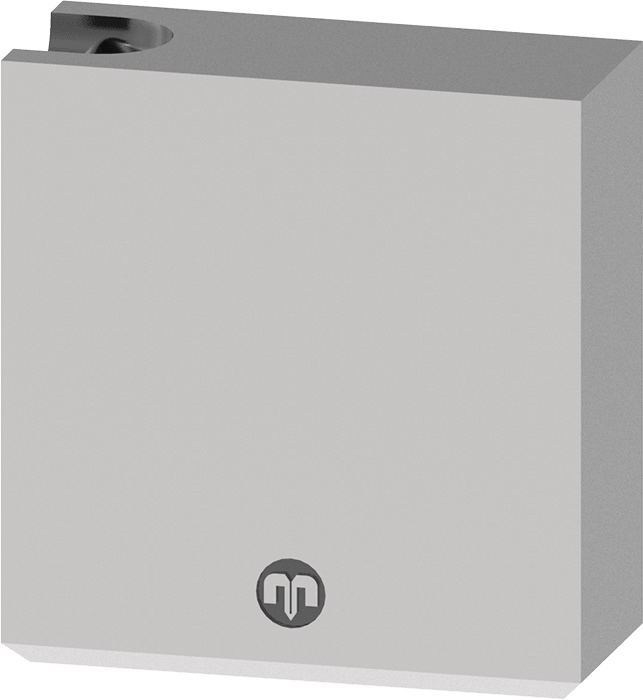

konturierbar-TGBL-ansicht

TGBL

Sizes / Shot weights

The following table is showing possible shot weights in relation to the viscosity of the used plastics.

	TGBL-1	TGBL-2	TGBL-3
Name	TGBL-1	TGBL-2	TGBL-3
max. Konturtiefe	6.5	9.6	12.5
Anschnitt	0.6 -1.2	0.8 - 1.8	0.5x4.5 - 1.5x5.5
Ø Kanal	4	6	8
NV*	35	120	1000
MV*	25	75	500
HV*	15	50	300

* max. shot weight (g) | NV: low viscosity | MV: medium viscosity | HV: high viscosity

TGBL

Detailed view

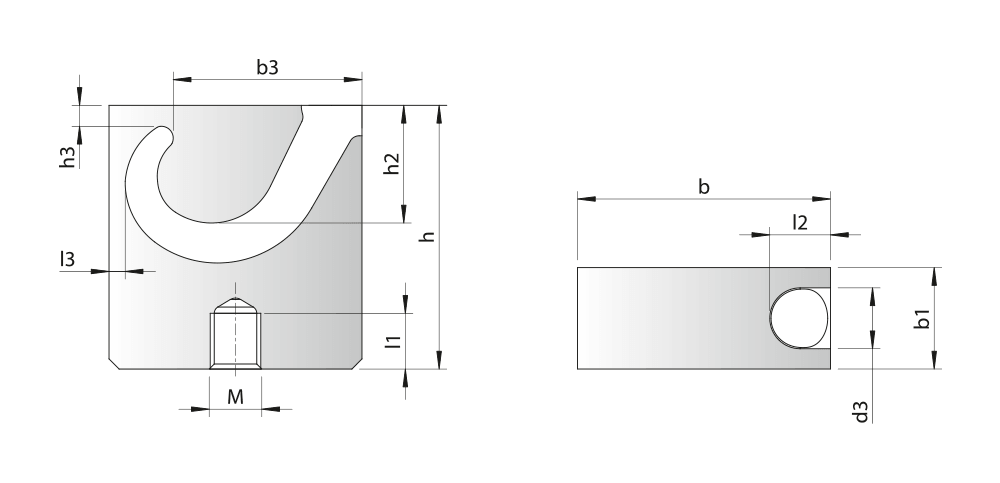

konturierbar-TGBL-detail

	Name	b	b1	B3	h	h2	h3	l1	l2	l3	M	HRC
TGBL-1	TGBL-1	18	8	12.8	22	9.5	2.3	5.5	4.5	1.2	5	54+2
TGBL-2	TGBL-2	25	10	18.7	26	11.6	2.3	5.5	6	1.6	5	54+2
TGBL-3	TGBL-3	30	12	21.7	30	14.5	3.1	6.5	7	2	6	54+2

TGBL

Cavities

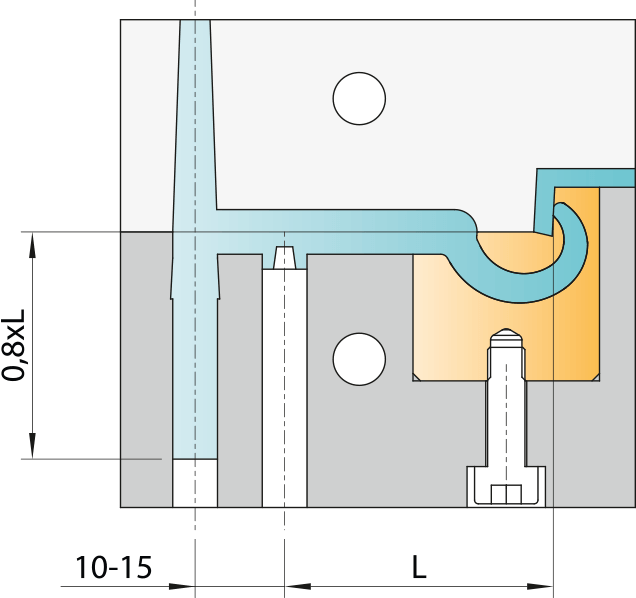

TGBL-1-frei

Example for single cavity

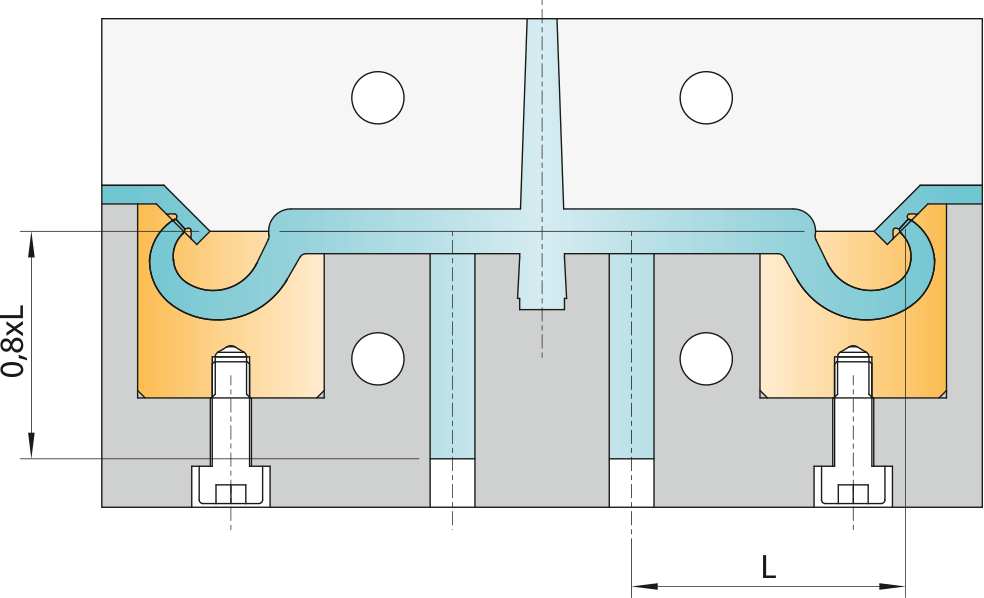

TGBL-2-frei

Example for two cavities

Table for distance L

	Name	TPE, TPU etc.	PE, PP, PET etc.	PC/ABS, PA, POM,HI-PC etc.	PA+GF, PC, SAN, PMMA etc.
TGBL-1	TGBL-1	21-27 mm	27-34mm	34-40mm	X
TGBL-2	TGBL-2	28-34 mm	33-40mm	39-45mm	X
TGBL-3	TGBL-3	33-40 mm	40-49mm	46-55mm	X

X = Restrictedly suitable for rigid and reinforced plastics

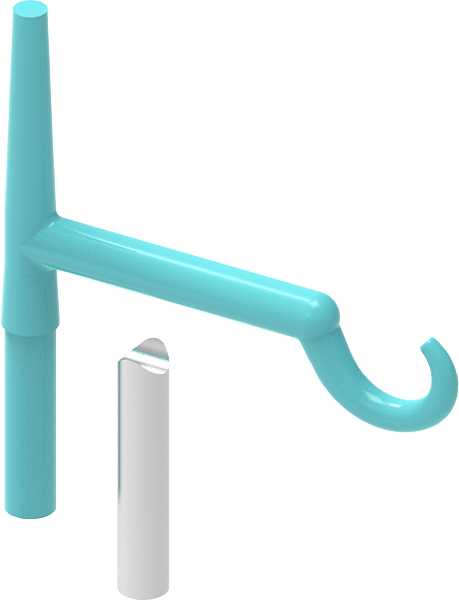

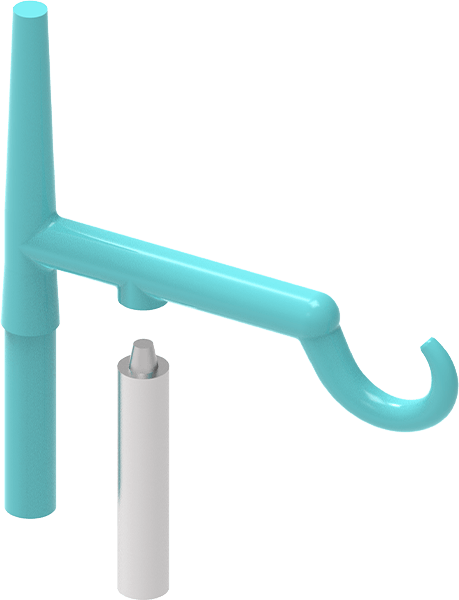

Example for suplementary ejector

konturierbar-TGBL-beispiel-geometrie-hilfsauswerfer-1

konturierbar-TGBL-beispiel-geometrie-hilfsauswerfer-2

TGBL

Installation examples

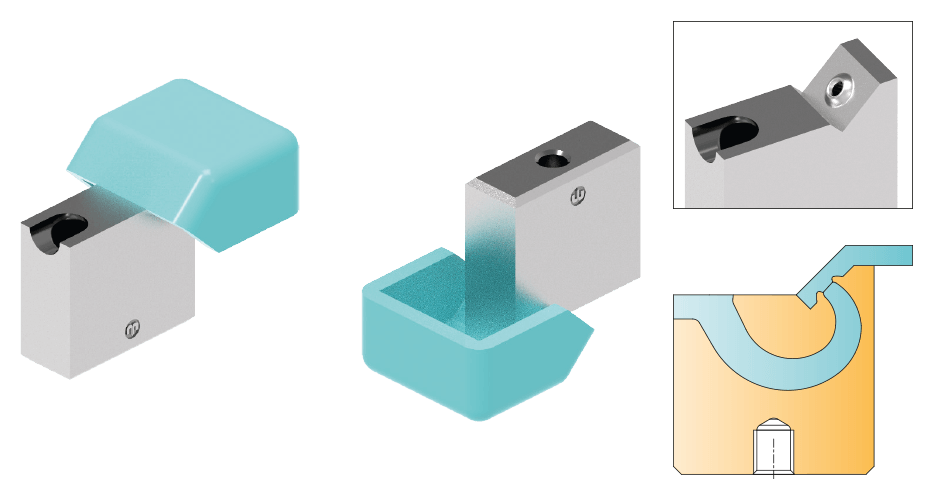

konturierbar-TGBL-anwendungsbeispiel-1

Example 1

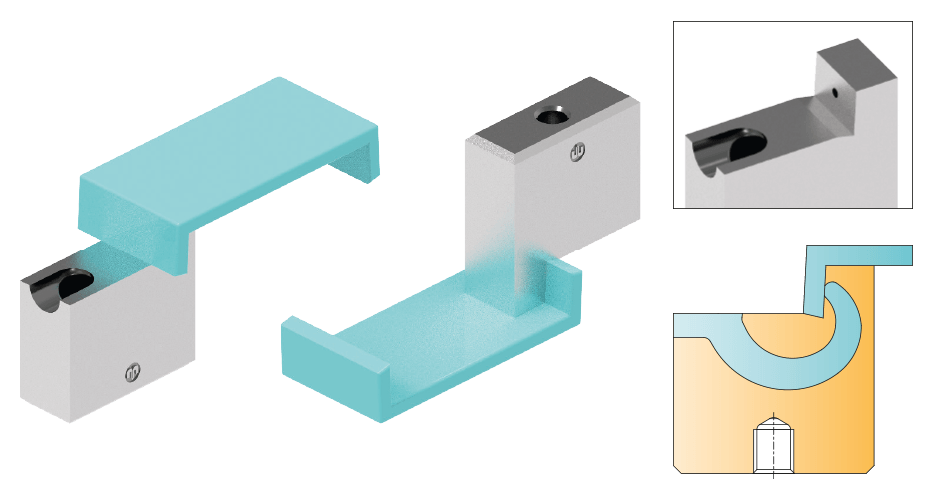

konturierbar-TGBL-anwendungsbeispiel-2

Example 2
