Contourable

Space-saving, contourable tunnel gate insert.

TGML

Tunnel Gate Insert - TGML

Konturierbar_TGML
  1. Space-saving, contourable Tunnel Gate insert for gating above the parting line
  2. Highly wear resistant hot working steel M2 (1.3343) 54+2 HRC

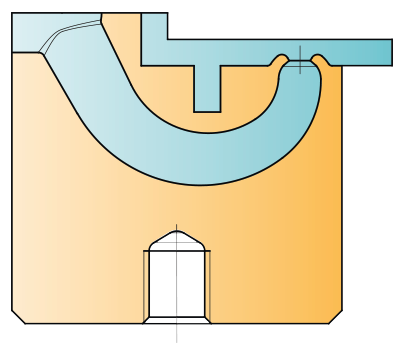

Konturierbar_TGML_-_Bauplan

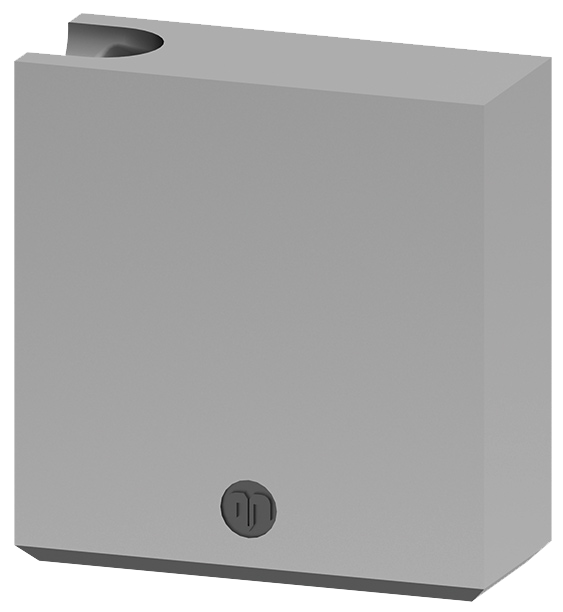

Konturierbar_TGHL_-_Ansicht



TGML

Größen / Schussgewichte

Die abgebildete Tabelle zeigt die mit den jeweiligen Größen erreichbaren Schussgewichte in Abhängigkeit zur Viskosität der verwendeten Kunststoffe.

TGML-1 TGML-2 TGML-3
max. Konturtiefe 5.5 6.5 7.5
Anschnitt 0.6 -1.2 0.8 - 1.8 0.5x4.5 - 1.5x5.5
Ø Kanal 4 6 8
NV* 35 25 15
MV* 120 75 50
HV* 1000 500 300

* max. shot weight (g) | NV: low viscosity  | MV: medium viscosity  | HV: high viscosity

TGML

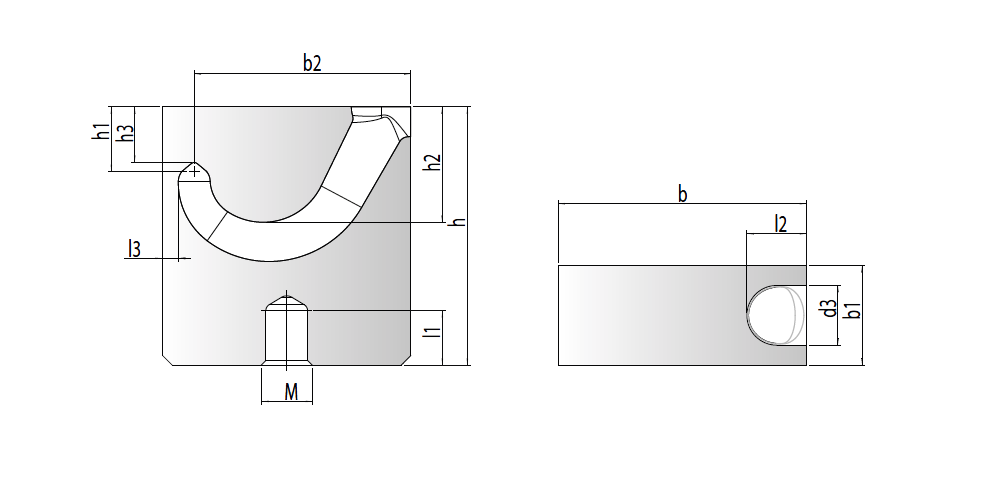

Detailed view



Konturierbar_TGML_-_Detail_transparent
b b1 b2 d3 h h1 h2 h3 l1 l2 l3 M HRC
TGML-1 18 8 15.7 4 22 5.5 9.5 4.86 5.5 4.5 1.2 5 54+2
TGML-2 25 10 21.8 6 26 6.5 11.6 5.6 5.5 6 1.6 5 54+2
TGML-3 30 12 26 8 30 7.5 14.5 6.6 6.5 7 2.2 6 54+2
TGML

Cavities



TGML-1-frei-1

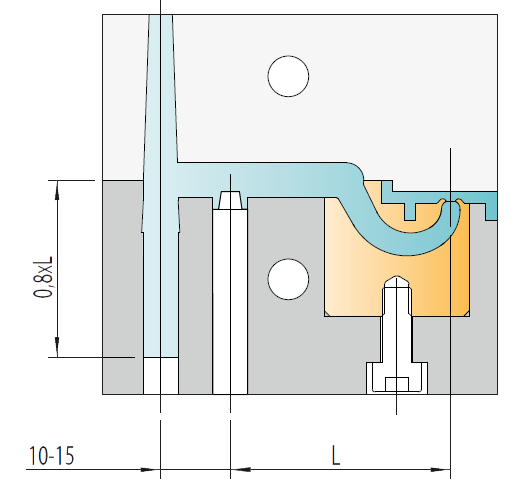

Example for single cavity

TGML-2-frei

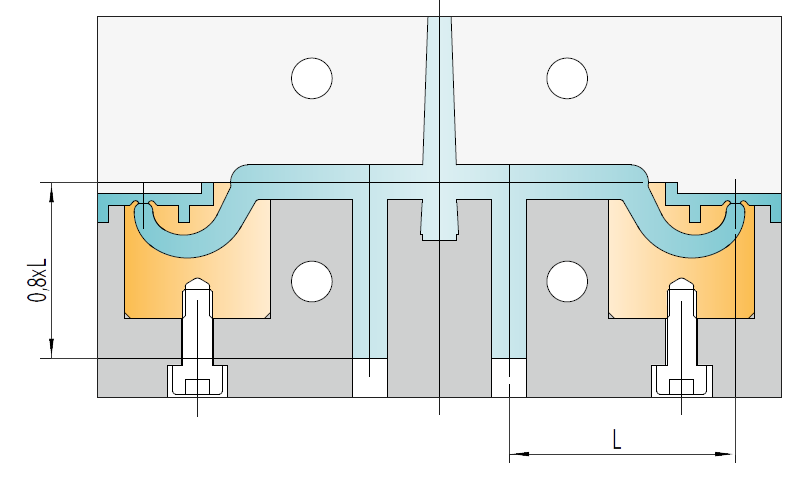

Example for two cavities



Table for distance L



TPE, TPU etc. PE, PP, PET etc. PC/ABS, PA, POM,HI-PC etc. PA+GF, PC, SAN, PMMA etc.
TGML-1 21-27 mm 27-34mm 34-40mm X
TGML-2 28-34 mm 33-40mm 39-45mm X
TGML-3 33-40 mm 40-49mm 46-55mm X

X = restrictedly suitable for rigid and reinforced plastics

Example for suplementary ejector



Konturierbar_TGLL_-_Beispiel_Geometrie_fuer_Hilfsauswerfer
Konturierbar_TGLL_-_Beispiel_Geometrie_fuer_Hilfsauswerfer_2
TGML

Installation examples

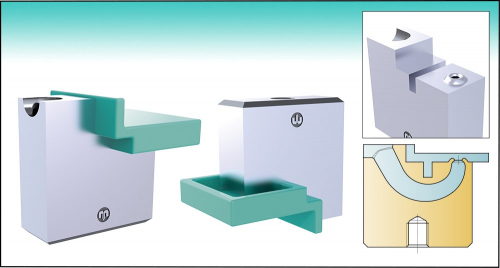

Konturierbar_TGLL_-_Beispiel_mit_umlaufender_Rippe

TGML with peripheral rib
