Space-saving, contourable tunnel gate insert.

TGLL

Tunnel Gate Insert - TGLL

Konturierbar_TGLL
  1. Space-saving, contourable Tunnel Gate insert for gating below the parting line
  2. Highly wear resistant hot working steel M2 (1.3343) 54+2 HRC

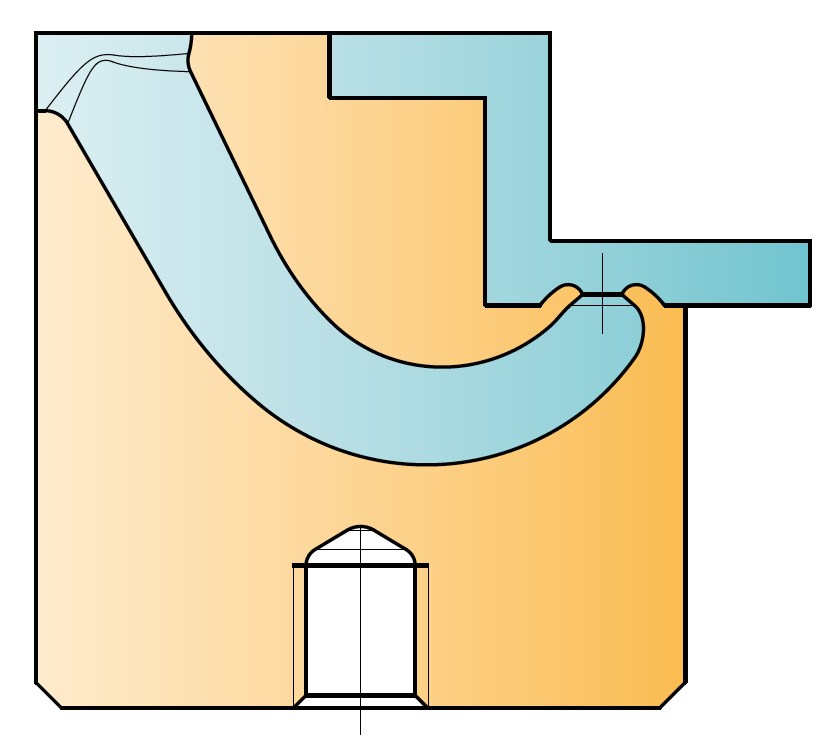

Konturierbar_TGLL_-_Bauplan

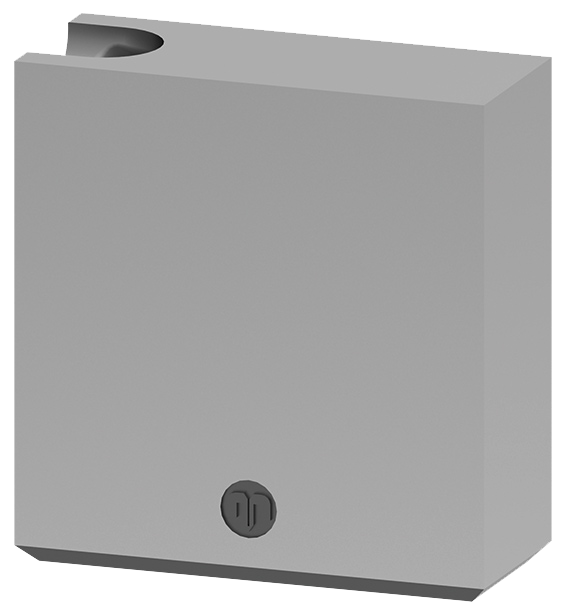

Konturierbar_TGLL_-_Ansicht



TGLL

Sizes / Shot weights

The following table is showing possible shot weights in relation to the viscosity of the used plastics.

TGLL-1 TGLL-2 TGLL-3
max. Konturtiefe 8.5 10.5 12.5
Anschnitt 0.6 -1.2 0.8 - 1.8 0.5x4.5 - 1.5x5.5
Ø Kanal 4 6 8
NV* 35 25 15
MV* 120 75 50
HV* 1000 500 300

* max. shot weight (g) | NV: low viscosity | MV: medium viscosity | HV: high viscosity

TGLL

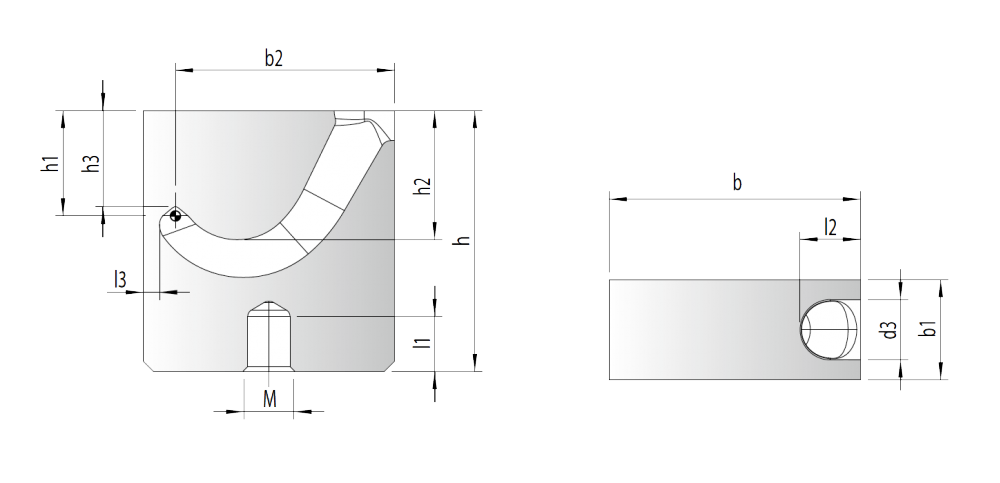

Detailed view



Konturierbar_TGLL_-_Detail
b b1 b2 d3 h h1 h2 h3 l1 l2 l3 M HRC
TGLL-1 18 8 15.7 4 22 8.5 9.9 7.8 5.5 4.5 1.2 5 54+2
TGLL-2 25 10 21.8 6 26 10.5 12.9 9.6 5.5 6 1.6 5 54+2
TGLL-3 30 12 26 8 30 12.5 14.8 11.6 6.5 7 2.2 6 54+2
TGLL

Cavities



TGLL-1-frei

Example for single cavity

TGLL-2-frei

Example for two cavities



Table for distance L



TPE, TPU etc. PE, PP, PET etc. PC/ABS, PA, POM,HI-PC etc. PA+GF, PC, SAN, PMMA etc.
TGLL-1 21-27 mm 27-34mm 34-40mm X
TGLL-2 28-34 mm 33-40mm 39-45mm X
TGLL-3 33-40 mm 40-49mm 46-55mm X

X = Restrictedly suitable for rigid and reinforced plastics

Example for suplementary ejector



Konturierbar_TGLL_-_Beispiel_Geometrie_fuer_Hilfsauswerfer
Konturierbar_TGLL_-_Beispiel_Geometrie_fuer_Hilfsauswerfer_2
TGLL

Installation examples



Konturierbar_TGLL_-_Tiefer_Kontursprung

TGLL low contour step
